Cocoon fireplaces use bioethanol, a safe and clean renewable energy source that comes in liquid form and creates a vibrant no odour clean-burning flame that is safe for the user and for the environment. A Cocoon fireplace produces as little CO2 as a candle.

Cocoon fireplaces are fuelled with bioethanol, a biofuel derived from plants including corn, wheat, barley and sugarcane.

*** Important re: coastal areas | Cocoon fires may experience rusting on the top surface if not kept dry and clean from salt residue. It is important to ensure the top surface is dry and free from any residual salt or dust. Do not use cleaning products on your Cocoon ***

Cocoon fireplaces have no need for flue, allowing endless installation possibilities. Architects, designers and home renovators around the world have embraced bioethanol fireplaces to achieve traditional, minimalist contemporary and luxury styles.

Along with the frontal heat, as the bioethanol burns the main body of the fireplace heats and radiates warmth throughout the room.

What type of combustion is used?
The combustible used is ethanol, also known as ethyl alcohol, drinking alcohol or grain alcohol. It is a biofuel which can be derived from plants including corn, wheat, barley and sugarcane.

How does the chimney work?
Ethanol is poured into the Strom Burner inside of the chimney.
Simply dip the igniter match into the Strom burner, remove the igniter and light with a match or lighter. Place the lit igniter into the Strom Burner to start.

How long does this type of fire burn for?
The duration of the flame depends on the quantity, climate conditions, altitude, air current and the height of the flame. One litre can burn for about 1 1/2 hours with a full flame. The duration of the flame reduces considerably in an area with more air current.

The burner contained inside can hold enough fuel to burn for up to 4-5 hours depending on the heat setting, which can be adjusted for comfort.

Does it produce soot?
It can produce soot, if there are ceramic logs located too close to the flame or if a continuous air current moves the flame to one side of the steel combustion box. It is possible to remove the soot on the Strom steel box by using a dry cloth. Do NOT use any type of cleaning products.

How much CO2 is produced by the combustible?
The combustible produces less CO2 than two medium size candles.

Once burning the Cocoon gets hot and it cannot be touched whilst in use. If there are children in the area it is advisable to use a fire protection screen, the same as you would with any fireplace. An advantage over wood fires is there is no rise of ash or small burning pieces to spit out.

Does it smell when burning?
The bioethanol (methylated spirits) smells slightly as you pour it into the tray, but does not emit an odour whilst burning.

Can you turn it off?
The flame can be adjusted and extinguished

How much heat does it produce?
The amount of heat emitted depends on several factors:
- how high you have the flames set
- your home itself. If you have a lot of glass or you have concrete floors you will get heat loss, and it depends on the insulation of your home.

The Cocoon Fires produce approx 3.6kw, which is equivalent to a small to medium gas or electric heater.

Once burning the tray should NOT be moved as liquid contents are hot.

IMPORTANT: Due to changes in regulations to the chamber for the standing versions of Cocoon Fires, if you would like to convert an Aeris Hanging Fire to a pedestal model at a later date you will need to also purchase a new etched combustion chamber.

Combustion chamber capacity: 2 litre (burns up to 5 hours)

IMPORTANT NOTE: Not suitable for exposure to salt air on a constant basis.

Dimensions:
Main body: diameter 60cm x 38cm high
Pedestal: diameter 40cm x 36cm high
Overall height 74cm including Cocoon shell.

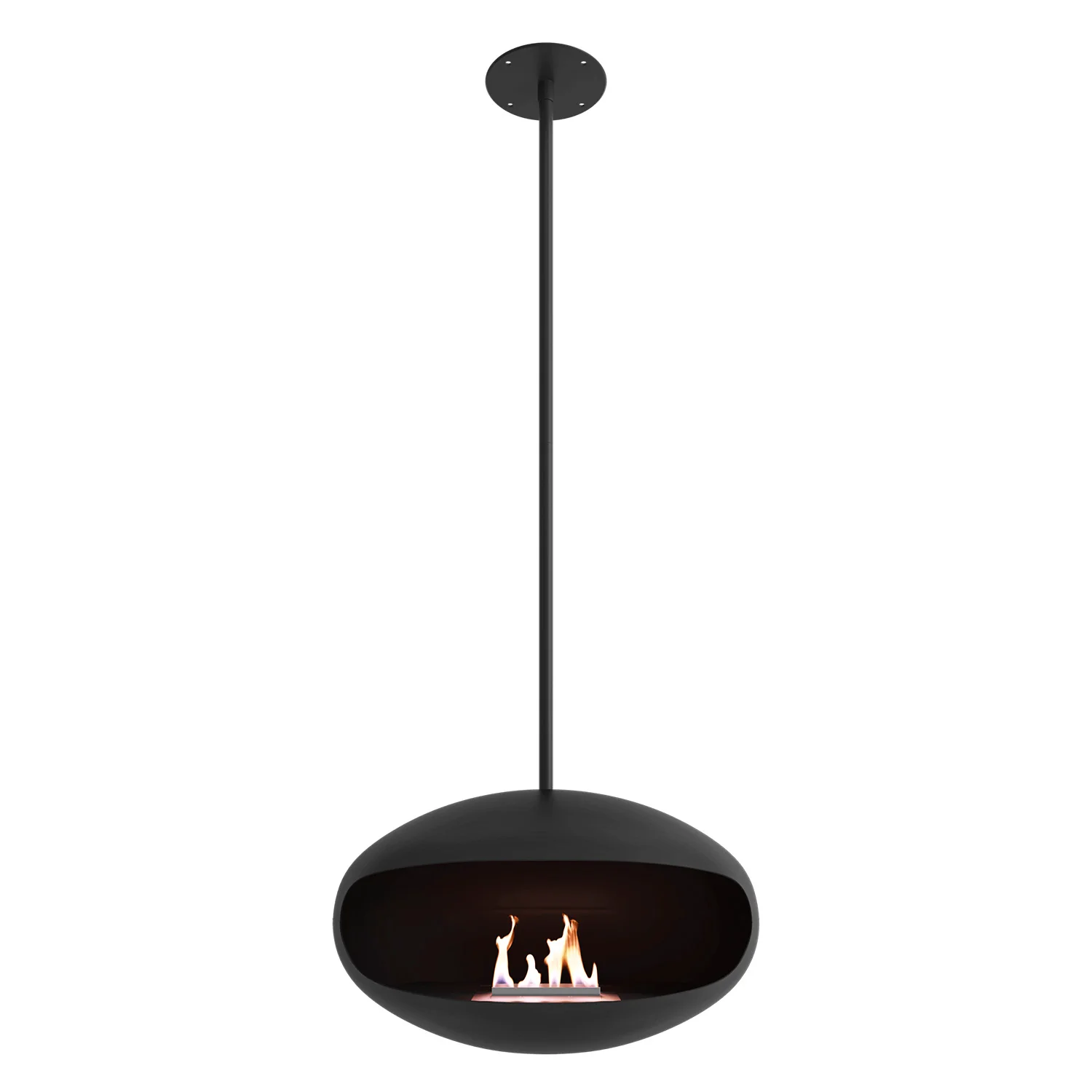

Height Adjustable Hanging System (Stainless Steel ONLY):
Mounting Plate:
Diameter 19cm
Height 2.5cm

Adjustable Hanging Pole:
6 height positions
Full extension 142cm,
Height Positions: 134.5cm, 125.5cm, 116.5cm, 107.5cm
Minimum extension: 98.5cm
Maximum length of complete unit at full extension: 182.5cm
This includes mounting bracket at 2.5cm (1” in) high, Hanging Pole at 142cm high and Cocoon at 38cm high.

Hanging System in Black, White, Copper and Brass:
360° rotation NOT possible
Combination of extension poles for height adjustment
Brass and Copper are available with Angled Ceiling Bracket
Full hanging system extension 202.50cm (80” in)

Hanging System Poles:
25cm (10”in) connection pole (not optional)
25cm (10”in) extension pole
50cm (20”in) extension pole
100cm (40”in) extension pole
240.50cm (94.6” in) – full extension (including the Shell)

For high ceilings: 50 cm and 100cm extension poles are available.
For pitched or angled roofs angled mounting brackets are available (please see accessories)
Additional Mounting Plates are available so your Cocoon can be hung in various locations throughout your home.
The units can rotate 360 degree.

Burner system is produced in South Africa.
Cocoon and accessories are produced in Vietnam.

Price shown is for a complete unit including stand or hanging pole.
